4K/HDR
API FIRST
100
FPGA based edge acceleration featuring non-blocking 100GE processing that scales to the world's largest live broadcast productions
IP
100% IP Native following open standard protocols
BLADE//runner
BLADE//runner is a software suite of live broadcast production apps which provide a wide variety of tools for professional productions. Designed with a highly flexible and modular core allowing for the creation and deletion of resources and functions on-the-fly. BLADE//runner is controllable by an open API as well as through NMOS IS-04/-05 and is designed for the modern broadcast facility, where flexibility and scalability are essential.
IP Gateway & Router
IP gateway functionality for 4K/3G/HD/SD and MADI
- ST2110/2022 encapsulation/de-encapsulation
- ST2022-7 seamless protection switching (hitless failover)
- Audio/Video/Metadata Routing
- 6k X 6k audio router for mono level shuffling
- Configurable I/O for SDI or MADI
IPGR - Delay & Frame sync
IP Delay and Frame sync functionality
- IP Video delay
- IP Audio delay
- Auto-alignment feature of Audio/Video/Metadata essence flows
- Audio Sample Rate Conversion
- UHD gearbox quad/single link (2SI) conversion
- Test-signal and LTC timecode generator
Video Color correction & Conversion
- Video RGB/YUV Color Correction
- SDR <-> HDR tetrahedral conversion with user loadable LUTs
Video Mixer & Keyer
- A/B mixer
- Background keyer
- Configurable transitions
- Frame grabber/player and video clip player
PTP Grand Master Clock
PTP Grandmaster functionality with optional GPS input
- High capacity supporting hundreds of slave devices
- IEEE1588 PTPv2 with support for SMPTE 2059-2 and AES67 profiles
- GPS input
- Analog ref and Word clock output
Format conversion
Professional quality video format conversion
- 4K/3G/HD/SD video format conversion
Compression
- VC2 Dirac compression
- Configurable compression ratio between 1:2.5 and 1:8

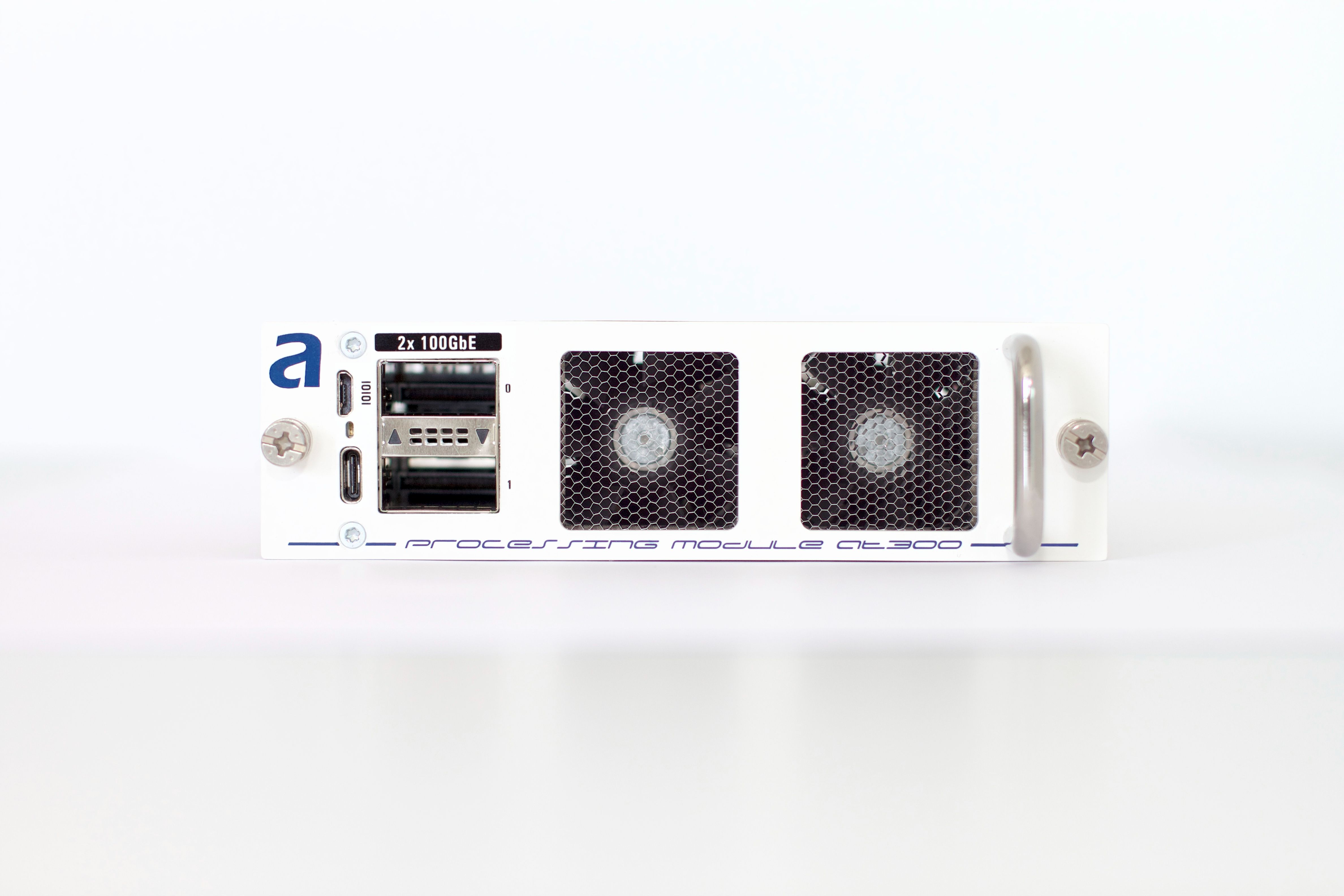

at300 FPGA ACCELERATOR CARD
Designed for hybrid-cloud environments where compute heavy uncompressed 4K workflows are most efficiently processed at the edge, the AT300 is arkona's latest generation Programmable Acceleration Card (PAC).
Powered with Intel S10MX FPGAs and with dual non-blocking 100GE interfaces, it packs a tremendous amount of compute power into a compact format while still being 40% more power efficient than the previous generation.
Highest density 4K/HDR
With its dual non-blocking native 100GE interfaces, the AT300 provides the highest density 4K/HDR solution on the market with up to 85 UHD instances per RU
12 x faster performance
Designed with 300 GBps HBM2 memory the AT300 is the industry's first compute platform with High Bandwidth Memory (HBM) that provides up to 12 x more memory bandwidth compared to DDR4 RAM
Seamless integration
Software defined
